New York City utilizes a complex system of zoning districts to regulate property development, primarily categorized as Commercial (C), Manufacturing (M) and Residential (R). These designations dictate specific “use and bulk” regulations, which determine both the purpose of a building and its physical dimensions. In many residential areas, the city applies commercial overlays—such as the C2-4 zoning district—to allow for the addition of commercial uses.

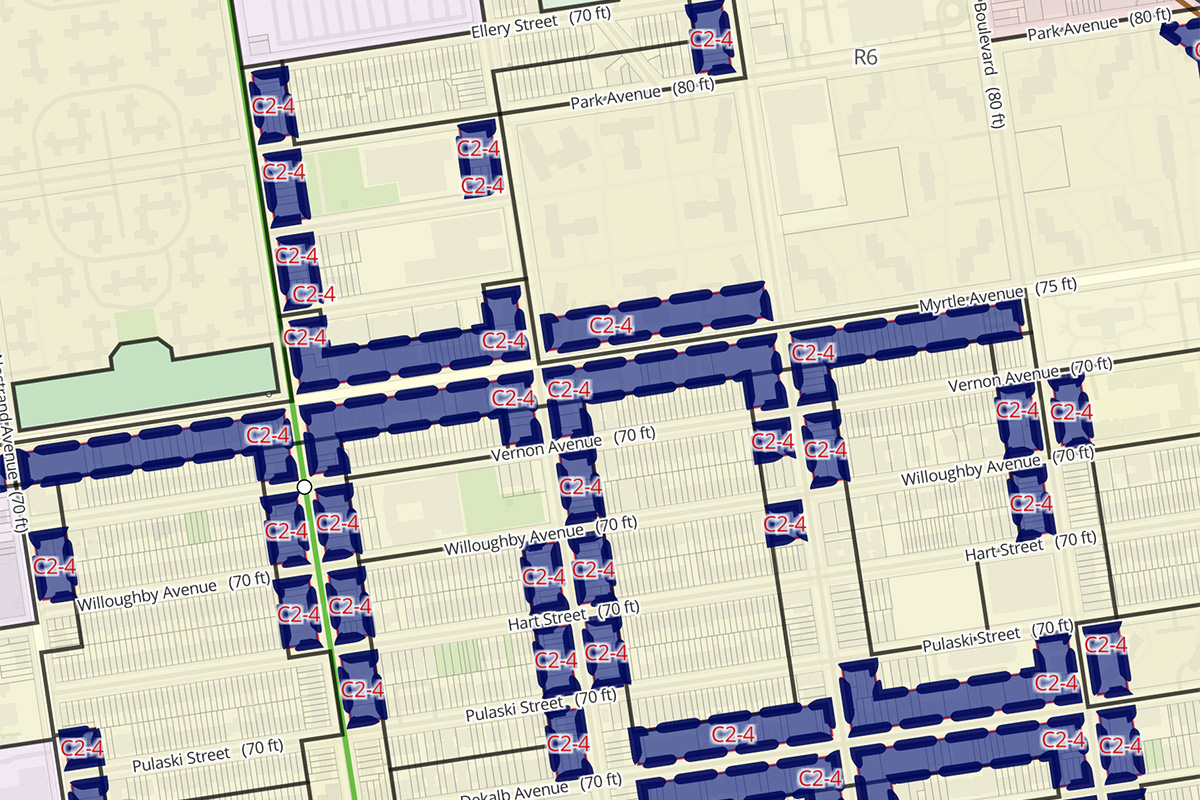

The C2-4 zoning district is a commercial overlay in New York City mapped within residential districts to provide for essential local retail and services, such as grocery stores, restaurants, and personal service establishments. These zones allow for mixed-use buildings, where commercial activity is limited to the ground floor while residential use governs the bulk regulations above. C2-4 zones are located in Manhattan, The Bronx, Brooklyn, Queens, and Staten Island.
I am Jorge Fontan, an architect in New York and owner of Vinculum Architecture, a Manhattan-based architecture firm. At Vinculum, we work on a variety of project types, from property and zoning analysis to complete building designs for new developments. In this article, I will review some of the basics of the New York City Zoning District C2-4.
C2-4 Zoning Commercial Overlay
In the C2-4 commercial overlay district, properties can be developed with commercial, community facility, and residential uses “as-of-right” (meaning no special permits are typically needed, provided all zoning rules are followed). The property is located within a residential district which dictates the overall residential bulk and height, with the overlay adding the commercial options and regulations for commercial use. The City of Yes significantly modified the rules under the New York City Zoning for Housing Opportunity amendment. This article reflects those modifications.

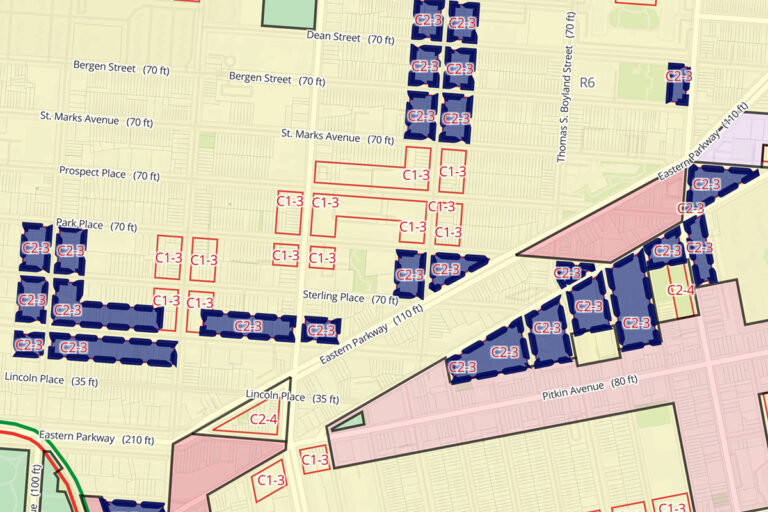

C1 & C2 Commercial Overlay Zoning Districts
C2-4 Zoning & Community Facility Use
The C2-4 Zoning District has primarily commercial uses, (in addition to the residential district) but you can develop community facility uses as-of-right in these districts.
Key considerations for the development of a Community Facility in an C2-4 zone include:
- Different Regulations: When you develop a site with community facility use, the specific bulk regulations (including Floor Area Ratio and height limits) may differ from those for other allowed buildings.
- Mixed-Use Options: Developers may also construct a mixed-use building that combines both residential and community facility components.
C2-4 Zoning Regulation Basics
Floor Area Ratio (FAR):
In a commercial overlay the floor area ratio for commercial use or the commercial portion of a mixed use building, as set in the Zoning Resolution, varies based on the residential zoning district:
- Commercial FAR = 1 in R1, R2, R3-1, R3A, & R3X
- Commercial FAR = 1.6 in R3-2
- Commercial FAR = 2 in R4, R5, R6, R7, R8, R9, R10, R11, & R12
Yards:
- Commercial Rear Yard = 20 ft minimum
Height and Setbacks for Commercial Overlays:
When a Commercial Overlay is mapped within a residential district ending in a letter suffix the height and setbacks of the residential district will apply.
Height and Setback (for commercial portions) in R1, R2, R3, R4, & R5 Districts:
- Front Wall Height: 30 ft Max or 2 stories
- Sky Exposure Plane: 30 Ft above street line
- Sky Exposure Pitch: 1 to 1
- Setback on Wide street = 15 ft
- Setback on Narrow street = 20 ft
Height and Setback (for commercial portions) in R6 & R7 Districts:
- Front Wall Height: 60 ft Max or 4 stories
- Sky Exposure Plane: 60 Ft above street line
- Sky Exposure Pitch (narrow street): 2.7 to 1
- Sky Exposure Pitch (wide street): 5.6 to 1
- Setback on Wide street = 15 ft
- Setback on Narrow street = 20 ft
Height and Setback (for commercial portions) in R8, R9, R10, R11 & R2 Districts:
- Front Wall Height: 85 ft Max or 6 stories
- Sky Exposure Plane: 85 Ft above street line
- Sky Exposure Pitch (narrow street): 2.7 to 1
- Sky Exposure Pitch (wide street): 5.6 to 1
- Setback on Wide street = 15 ft
- Setback on Narrow street = 20 ft
Mixed Use Buildings
In a mixed-use building within a commercial overlay district, the commercial and residential portions each have separate Floor Area Ratios (FARs). These ratios dictate the maximum allowed floor area for each specific use and the highest FAR determines the total building maximum FAR.
Total Building FAR: The maximum floor area for the entire building is determined by the highest applicable FAR of the permitted uses. You do not add the commercial and residential FARs together.
Example: If a property has a residential FAR of 5.0 and a commercial FAR of 2.0:
- The total maximum FAR for the entire building is 5.0.
- Within that 5.0 FAR, the commercial portion is limited to a maximum of 2.0 FAR.
The remaining area (after subtracting the used commercial FAR) can be used for residential or community facility uses, provided all other bulk requirements (height, setbacks, etc.) of the underlying residential zone are met. - Community facility may also have a different FAR.
Parking in C2-4
The new City of Yes for Housing Opportunity zoning changes have now drastically reduced parking requirements in New York City.
C2-4 Zoning
New York City zoning is complicated and has many special circumstances. This post is intended to provide a brief general overview of C2-4 zoning. This article is not a substitute for the New York City Zoning Resolution.
